RAM Diamond Ball Mounting Base – Heavy-Duty Vehicle Bracket

Description

RUR- RAM-B-238U

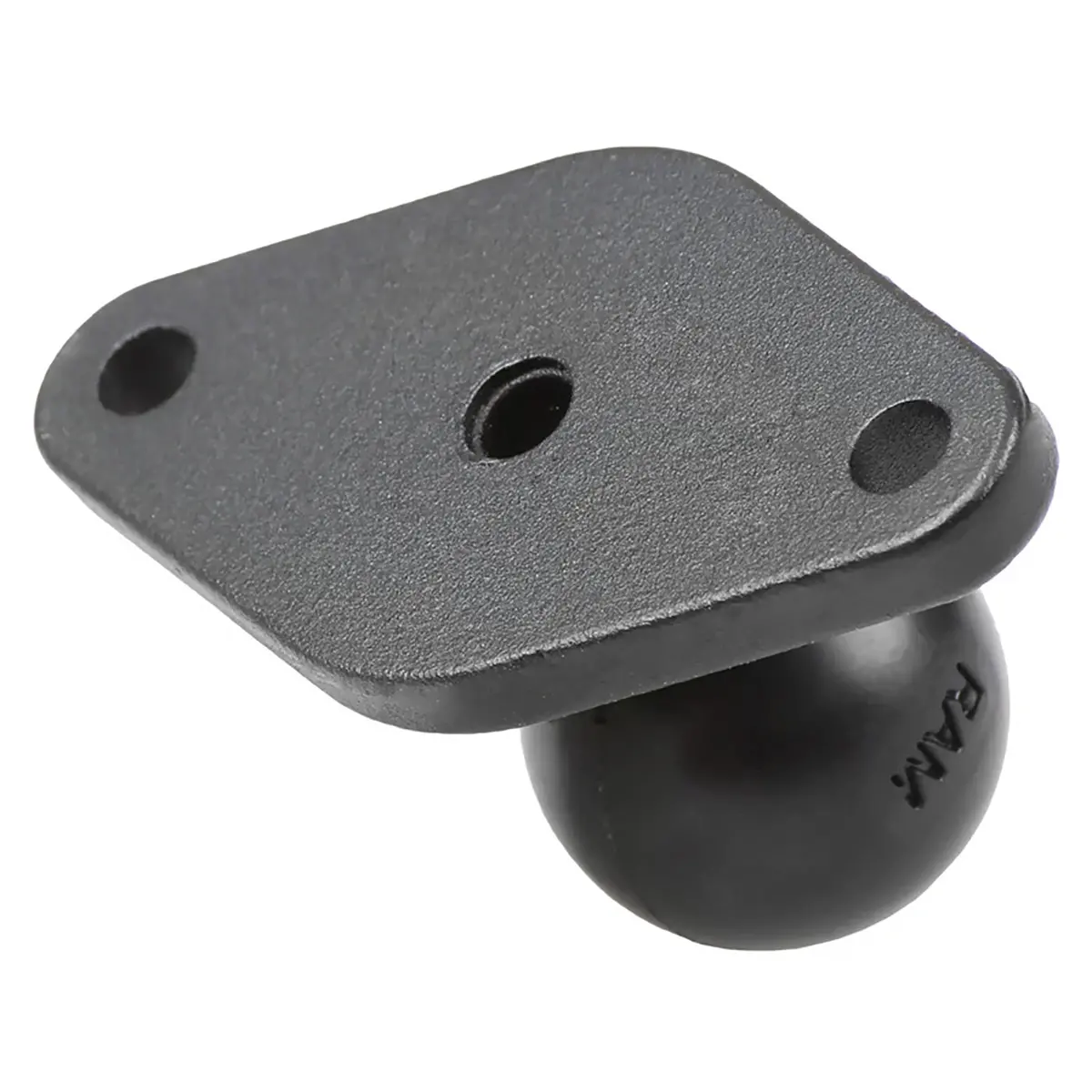

The RAM Diamond Ball Base consists of either a 1″ B-Size rubber ball or C-Size 1.5″ connected to a 2.43″ x 1.31″ diamond plate. This mounting component includes pre-drilled holes using the universal AMPS hole pattern.

The diamond plate features two holes that measure 1.912″ from center to center, matching the industry-standard AMPS hole pattern. This diamond ball base is compatible with a wide variety of RAM^® device holders and cradles.

Features:

• Diamond plate features industry-standard AMPS hole pattern and measures 2.43″ x 1.31″
• Compatible with several RAM^® device holders and cradles; ball and socket technology allows for near-infinite adjustability
• For B-Size ball mounts, connect to B-Size socket arms
• For C-Size ball mounts, connect to C-Size socket arms
• Made of powder-coated, marine-grade aluminum for durability and reliability in the most demanding environments
• Backed by a lifetime warranty

Specifications:

• Hole Pattern: 2-Hole AMPS – 1.912″
• Plate Size: 2.43″ x 1.31″
• Ball Size: B Size (1″) or C Size (1.5″)
• Standard Use: Weight Capacity – 2 lbs
• Heavy-Duty Use: Weight Capacity – 1 lb
