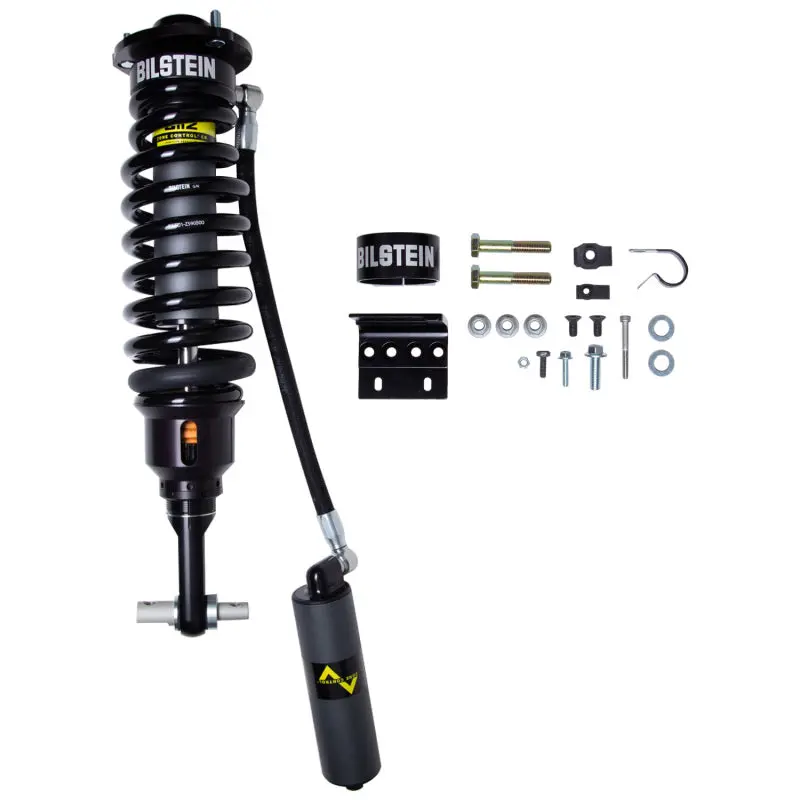

Description
The Bilstein B8 8112 (ZoneControl CR) is a direct fit, 2.65-inch body position-sensitive coilover shock designed for light trucks and SUVs. This advanced system utilizes ZoneControl CR technology, offering unparalleled ride comfort during daily driving alongside maximum control during demanding suspension inputs. It features a triple piston design with multiple stages of compression and rebound valving to optimize performance.
Key Features
- Direct fit for light trucks and SUVs, ensuring straightforward installation and compatibility.
- ZoneControl CR technology provides position-sensitive damping for superior ride comfort and control.
- Triple piston design with 3-stage compression and 2-stage rebound valving for precise ride tuning.
- Threaded spring seat allows for ride height adjustability, ranging from 0-3.8 inches.
Specifications
| Product Type | Suspension Shock Absorber and Coil Spring Assembly |
| Weight (lbs) | 44.20 |
| Collapsed Length (in) | 18.45 |
| Extended Length (in) | 23.22 |
| Collapsed Length (mm) | 468.7 |
| Extended Length (mm) | 589.8 |
| Lower Mount Type | Crossbar |
| Upper Mount Type | Special |
| Internal Design | Monotube |
| Finish | Dampers: EVO Grey/Springs: Black |
| Reservoir | Yes |
| Body Design | Smooth Body (Coilover) |
| Body Diameter (od) | 2.65 in. |
| Piston Diameter | 60mm |
| Body Material | Steel |
| Boot Included | No |
| Spring Seat Included | Yes |
| Front Main Spring Rate (lbs/in) | 500 lbs |
| Shaft Diameter (mm) | 22.0 |
Fitment
| Year | Make | Model | Submodel |
|---|---|---|---|
| 2015-2023 | Ford | F-150 | King Ranch |
| 2015-2023 | Ford | F-150 | Lariat |
| 2016-2023 | Ford | F-150 | Limited |
| 2015-2023 | Ford | F-150 | Platinum |
| 2021-2023 | Ford | F-150 | Tremor |
| 2015-2023 | Ford | F-150 | XL |
| 2015-2023 | Ford | F-150 | XLT |
