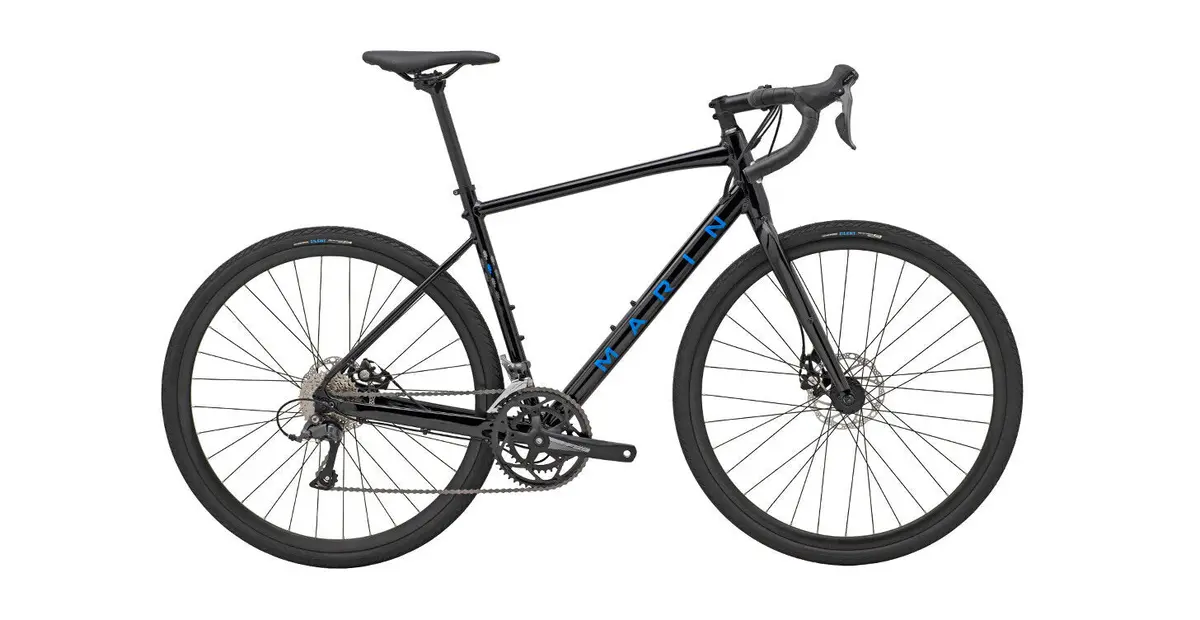

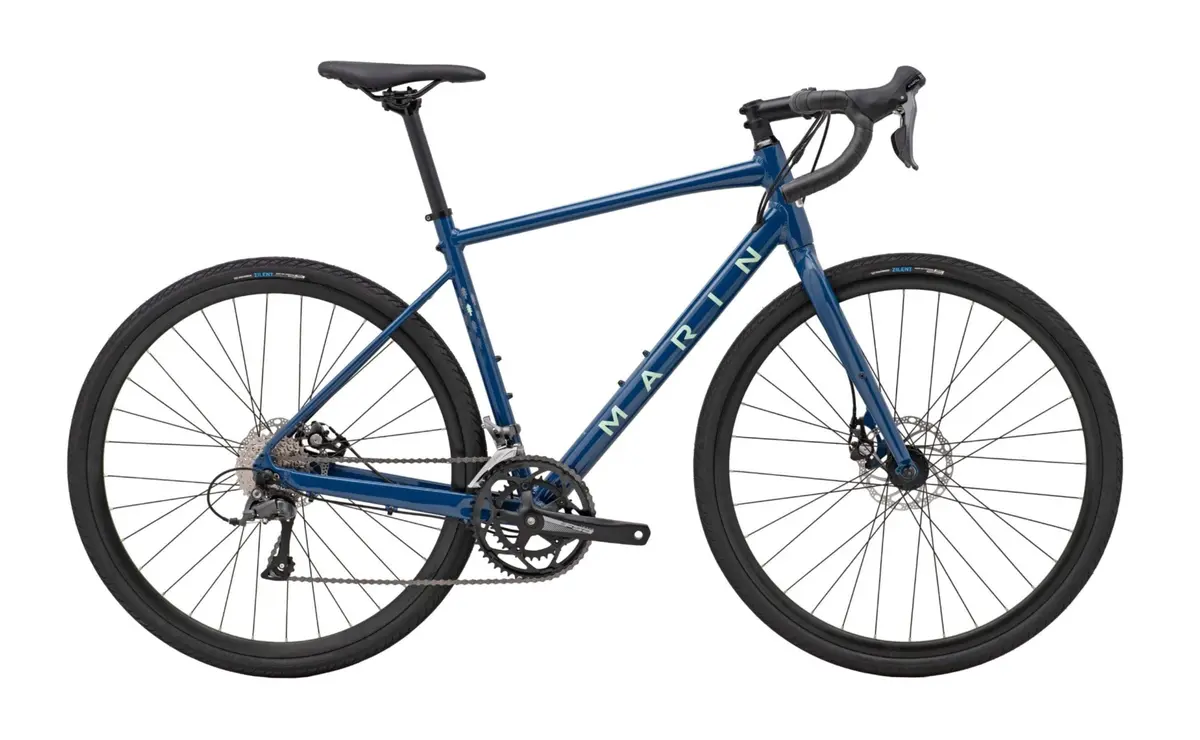

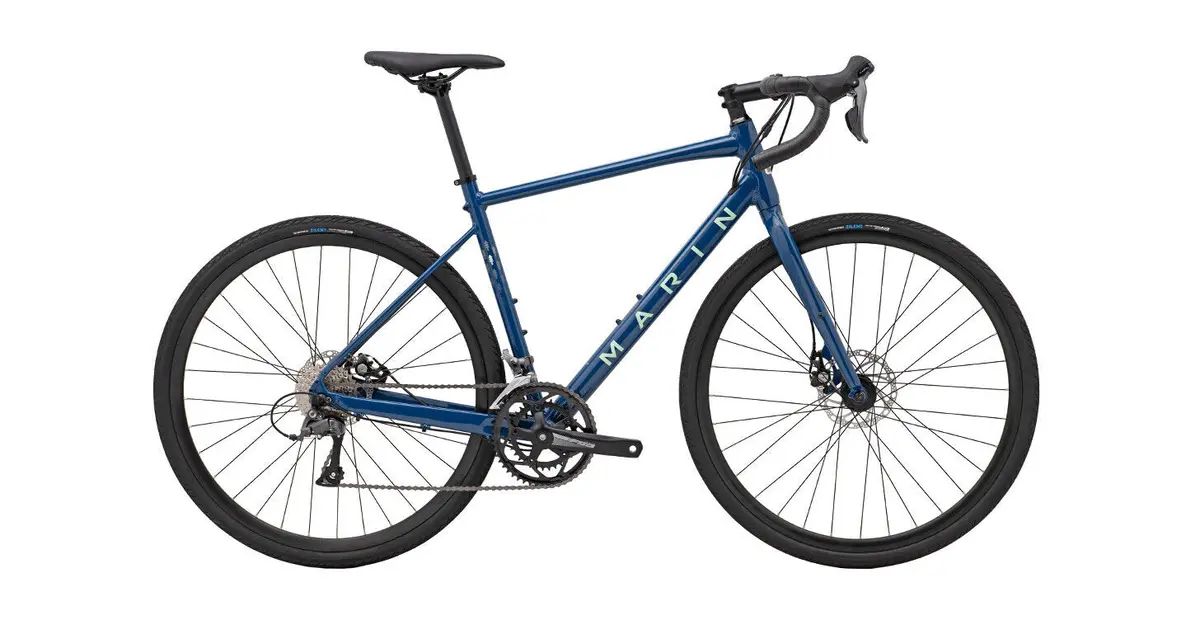

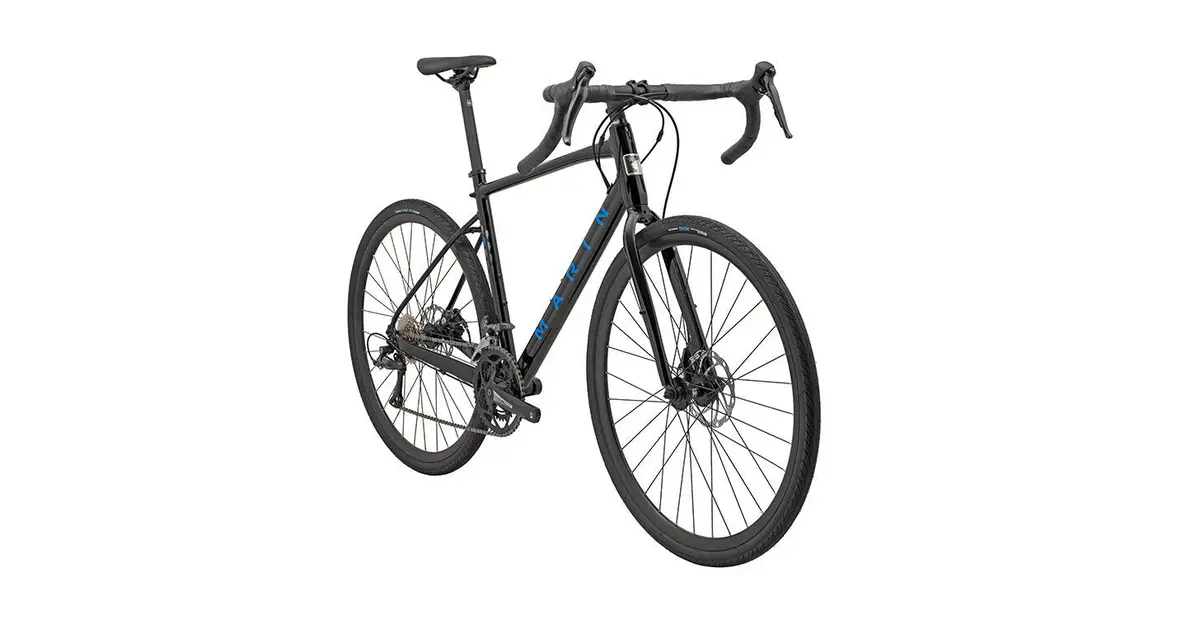

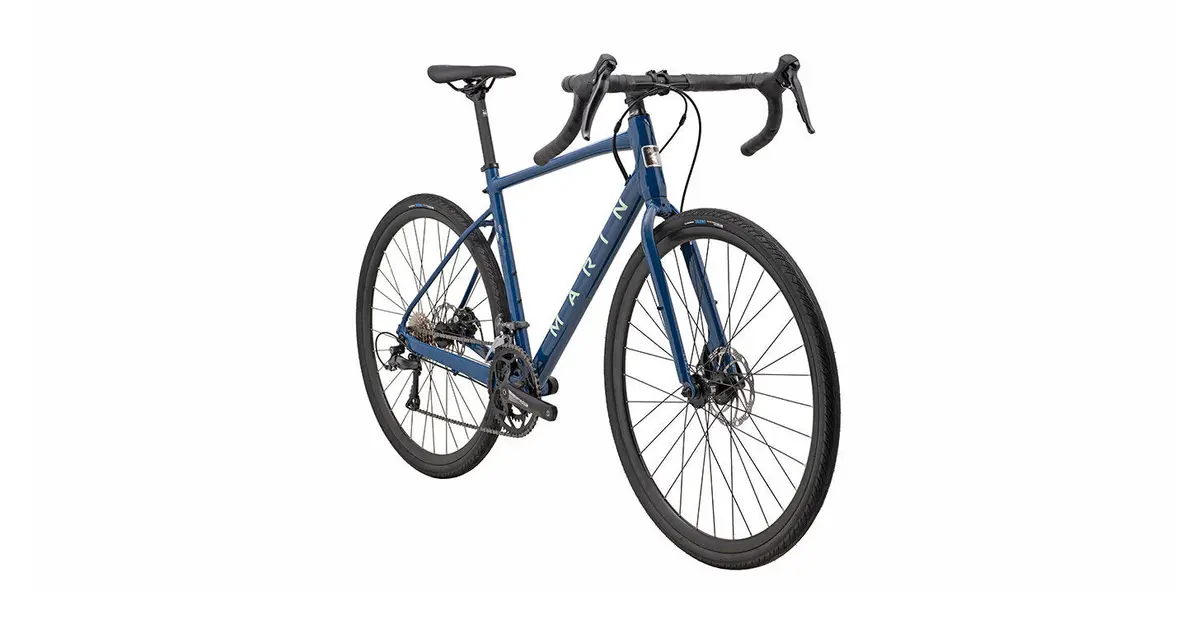

Marin Gestalt Road Bike – Shimano Claris 2×8-Speed Performance

Description

ENDURANCE AND ALL-WEATHER PAVEMENT

ADVENTURE ROAD RIDING

LONG DISTANCE COMMUTING

The Marin Gestalt takes you Beyond Road.

Tarmac and trail, rough roads and muddy commutes, bikepacking, touring and adventure. Daily trips and weekend escapes are all within the Gestalt’s wheelhouse, with no stopping when the asphalt turns to dirt.

Our most affordable Gestalt, we’ve taken our Series 2 aluminum frame and created a killer value all-terrain explorer that won’t stretch your budget. Aluminum straight-blade fork, WTB Exposure 36mm wide tires, Tektro mechanical disc brakes, Shimano Claris 2×8-speed groupset and plenty of quality Marin components all add up to bags of value and heaps of fun.

TIRE CLEARANCE

Gestalt frames and forks have clearance for up to 700Cx45 tires.

DISC BRAKES

Disc brakes provide smooth, controlled stopping in all conditions with minimal maintenance.

SPECIFICATIONS

• FRAME

  Series 2 Beyond Road, 6061 Aluminum, 700C Wheels, Relieved Head Tube and BB, Internal Cable Routing, Disc Specific Forged Dropouts w/ Mudguard and Rack Mounts

• FORK

  6061 Aluminum, Straight-Blade, Post-Mount Disc

• RIMS

  Marin Aluminum Double Wall, 19mm Inner, 25mm Tall, Disc Specific

• HUB, REAR

  Forged Aluminum Alloy, 6-Bolt Disc, 32H

• HUB, FRONT

  Forged Aluminum Alloy, 6-Bolt Disc, 32H

• SPOKE, NIPPLES

  14g Black Stainless Steel

• TIRES

  WTB Exposure Comp 700×36

• DERAILLEUR, REAR

  Shimano Claris 8-Speed

• DERAILLEUR, FRONT

  Shimano Claris

• SHIFT LEVER

  Shimano Claris 2×8-Speed

• CRANKSET

  FSA Tempo Compact, 50/34T

• BOTTOM BRACKET

  Sealed Bearing Square Taper

• CHAIN

  KMC Z8

• CASSETTE

  SunRace 8-Speed, 11-32T

• BRAKE, FRONT

  Tektro MD-C400 Road Mechanical, 160mm Rotor

• BRAKE, REAR

  Tektro MD-C400 Road Mechanical, 160mm Rotor

• BRAKE LEVERS

  Shimano w/ Integrated Shifters

• HANDLEBAR

  Marin Butted Alloy, Compact 12º Flared Drop

• STEM

  Marin 3D Forged Alloy

• GRIPS

  Marin Perforated Tape

• HEADSET

  FSA No.8B

• SEATPOST

  Marin Alloy, 27.2mm

• SADDLE

  Marin Beyond Road Concept

• PEDALS

  Marin Oso OEM Nylon Platform

  GEOMETRY



  	50	52	54	56	58	60
  ASTACK	552	568	582	601	620	641
  BREACH	367	372	377	387	402	404
  CHEADTUBE ANGLE	71°	71.5°	71.5°	71.5°	71.5°	71.5°
  DHEADTUBE LENGTH	120	135	150	170	190	210
  ESEATTUBE ANGLE	74.5°	74°	73.5°	73.5°	73.5°	73°
  FSEATTUBE LENGTH	460	480	500	520	540	560
  GTOPTUBE EFFECTIVE	520	535	550	565	585	600
  HBB HEIGHT	276	276	276	276	276	276
  IBB DROP	78	78	78	78	78	78
  JCHAINSTAY	432	432	432	432	432	432
  KWHEELBASE	1008	1014	1024	1040	1060	1070
  LSTANDOVER HEIGHT	714	732	755	775	794	814
  MFORK OFFSET	50	50	50	50	50	50
  SEATPOST DIAMETER	27.2	27.2	27.2	27.2	27.2	27.2
  HANDLEBAR WIDTH	420	420	440	440	460	460
  STEM LENGTH	70	70	90	90	110	110
  CRANK LENGTH	170	170	175	175	175	175
