Dexter DB-35 Trailer Disc Brake Rotor – 9.75″ Tapered, Zinc-Coated, 5 on 4.5″, 3,700 lb

Description

UFP by Dexter Axle Trailer Buddy Model DB-35 Disc Brake Hub/Rotor 9 3/4″ Diameter – HVR-1377-5S. #41019 TAPERED
The Trailer Buddy Disc brake hub-and-rotor features a ventilated design to allow heat to escape.  Cast iron construction with a UFP exclusive Zinc Plated Plus finish is ideal for marine applications.  This rotor will fit trailer axles with up to a 3750lb. capacity and 13″ to 15″ wheels.  When used in saltwater, rotors should be flushed out with fresh water to extend rotor life.
Features:

• Manufactured from cast iron
  • Superior wear characteristics at high temperatures compared to other types of steel
• UFP exclusive, Zinc Plated Plus finish for excellent corrosion resistance
• Races included (bearings, races, and seals sold separately)
• Fits axles with up to a 3750lb. capacity and 13″ to 15″ wheels
  • 3750lb. per pair capacity for 1 trailer axle
• 9 3/4″ Rotor Diameter
• 1/2″ wheel stud bolts with a 5 on 4.5″ pattern
• 5-year limited warranty

Bearing, Race, and Seal Information:

• Bearings (sold separately), Inner bearing: L68149, Outer bearing: L44649
• Races (included), Inner race: L68111, Outer race: L44610
• Seal: (sold separately), Inner diameter: 1.68″, Outer diameter: 2.565″
• Spindle Size: 1 3/8″ x 1 1/16″ Tapered

HVR-1377-5S 41019 UFP Zinc Plated Disc Brake Trailer Hub/Rotor for Model DB-35 Trailer Buddy Disc Brakes
Standard and most common UFP Rotor.  Compatible with standard marine grade grease and the VAULT bearing lubrication system.

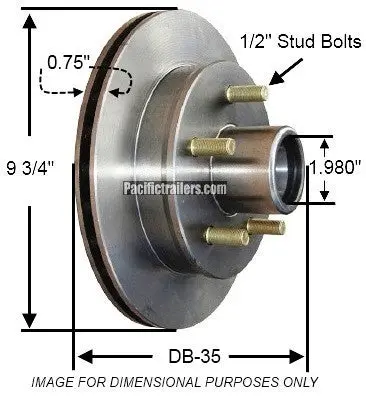

• Rotor Diameter: 9.75″
• Rotor Thickness: 0.75″
• Bearing Size: L68149 Inner and L44649 Outer Bearings
• Seal: 168255
• Hub Bore: 1.980
• Spindle Size: 1 3/8″ x 1 1/16″ tapered spindle
• Lug Pattern: 5 on 4.5″, 1/2″ diameter wheel studs
