Description

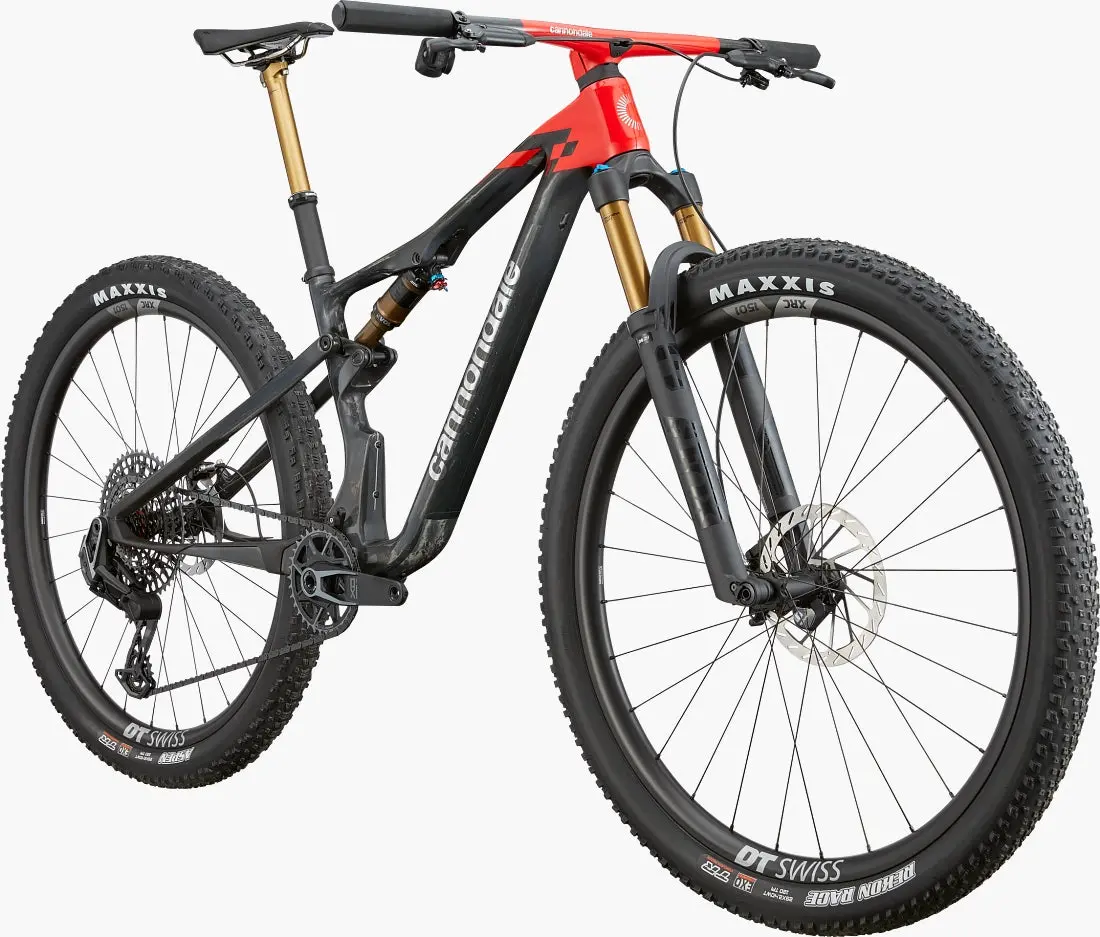

Scalpel 1

Built for winning races and scorching trails, the Scalpel 1 is one of the fastest, lightest, and most capable mountain bikes on the planet.

Overview

Hold on Tight

Thrill ride. With the most advanced XC suspension and geometry, and rowdy-ready spec, the World Cup winning Scalpel redefines cross-country speed – again.

Model Description

Built for winning races and scorching trails, the Scalpel 1 is one of the fastest, lightest, and most capable mountain bikes on the planet. The frame is crafted with our advanced lightweight carbon construction. SRAM’s potent XO AXS wireless electronic group handles the shifting. It rolls on speedy DT-Swiss XRC 1501 Spline carbon wheels, and features the top-of-the-line Fox Float Factory 34 SC Fork, Float Factory SL shock, and Factory Transfer SL Seatpost.

What it’s for

The thrill of speed. Winning World Cup XC and Marathon races. High-speed trail slaying.



Highlights

• Superlight Carbon frame with FlexPivot, 120mm travel, and Proportional Response-Tuned Suspension and Geometry
• Full Fox Factory equipped: Float Factory 34 SC 120mm fork, Float Factory EVOL SL shock, and Factory Transfer SL dropper post

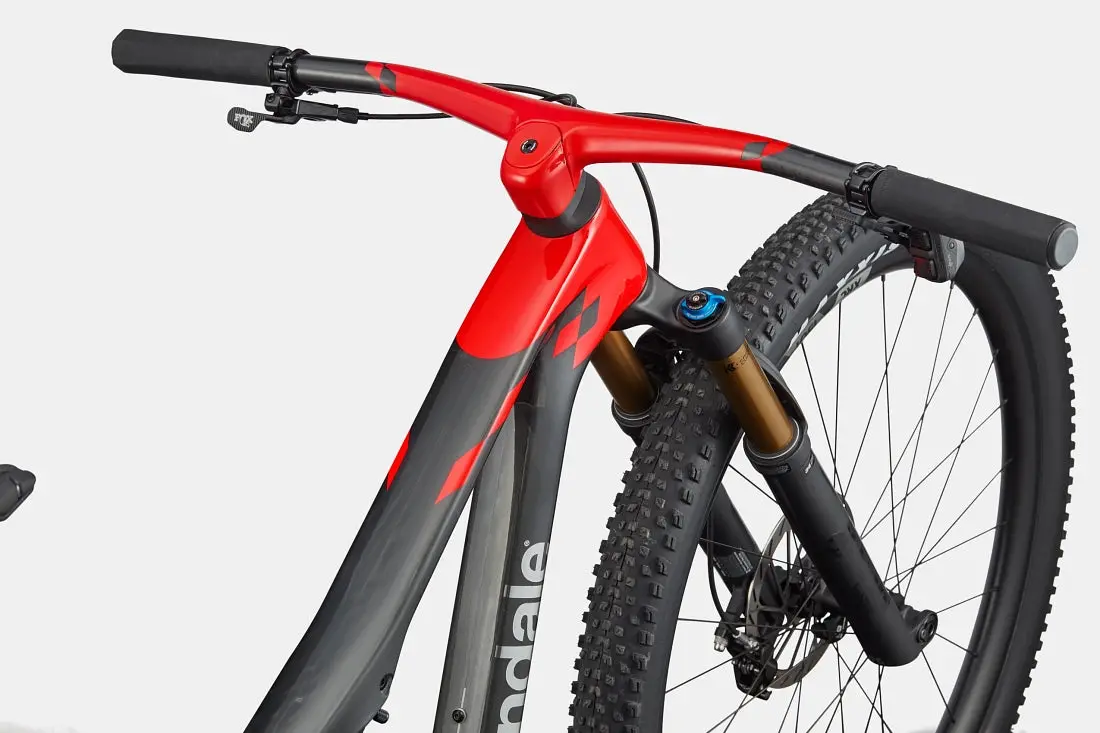

• Sleek SystemBar XC-One integrated carbon handlebar and stem
• Super-fast DT Swiss XRC 1501 Spline carbon cross-country wheelset
• Light, precise, and tough SRAM XO Eagle AXS Transmission electronic wireless 12-speed group with Level Silver Stealth brakes

Specs

DETAILS

• Platform Scalpel
• Model Name Scalpel 1
• Model Code C24254U

FRAMESET

• Frame Scalpel, lightweight carbon construction, 120mm travel, Proportional Response Suspension and Geometry, FlexPivot Chainstay, full internal cable routing, 73mm BSA, 1.5″ headtube with 1-1/8″ upper reducer/internal cable guide, 148x12mm thru axle, 55mm chainline, UDH, post-mount disc – 160mm native
• Fork Fox Float Factory 34 SC, Kashima, 120mm, 15x110mm thru-axle, tapered steerer, 44mm offset
• Headset Acros ICR
• Rear Shock Fox Float SL Factory EVOL SV, Kashima, 190×45, custom tune

DRIVETRAIN

• Rear Derailleur SRAM XO Eagle AXS, T-Type
• Shifters SRAM AXS T-Type Pod Controller
• Chain SRAM XO, T-Type, 12-speed

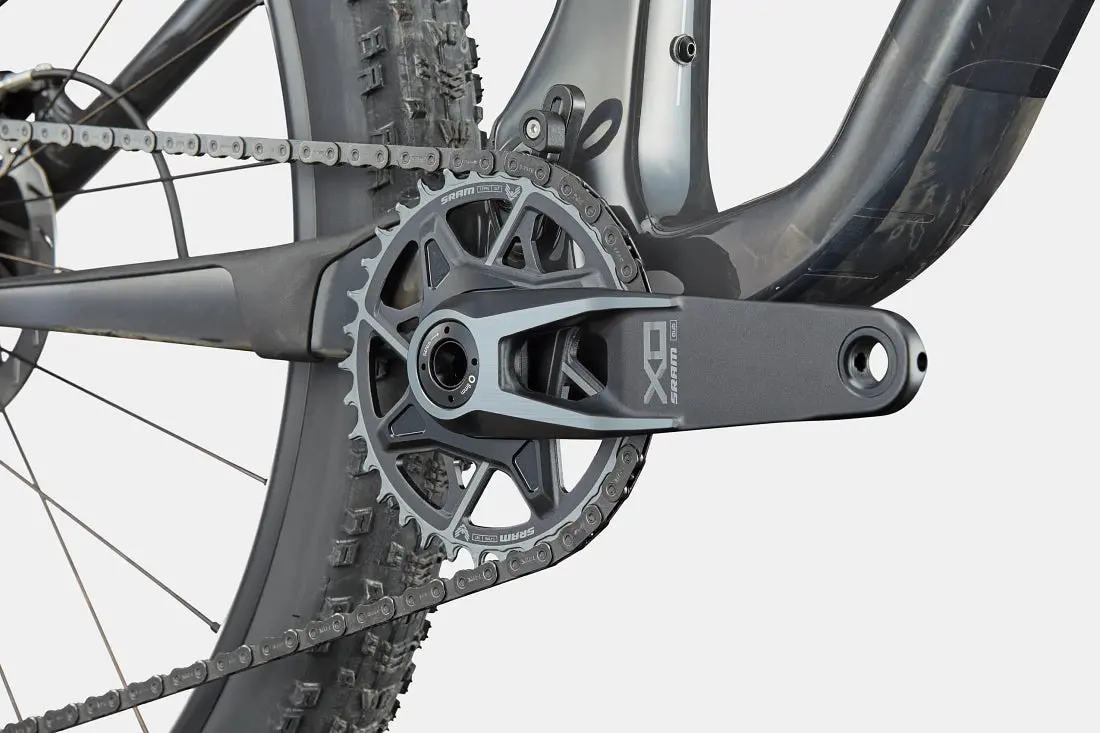

• Crank SRAM XO T-Type, 34T
• Rear Cogs SRAM XO Eagle, 10-52, T-Type, 12-speed
• Bottom Bracket SRAM DUB BSA 73mm MTB Wide

BRAKES

• Brakes SRAM Level Silver Stealth, 4-piston hydraulic disc, SRAM HS2 180/160mm rotors
• Brake Levers SRAM Level Silver Stealth

WHEELS

• Rims DT Swiss XRC 1501 SPLINE ONE, carbon, 30mm inner width, hookless, TSS tubeless ready
• Spokes DT Competition Race, straight pull
• Tire Size 2.4
• Wheel Size 29
• Hubs DT Swiss 240 15×110, 6-bolt (F) / 240 Ratchet EXP 36, 6-bolt, XD driver (R)
• Tires (F) Maxxis Rekon Race WT, 29×2.4″, EXO Protection, tubeless ready / (R) Maxxis Aspen WT, 29×2.4″, EXO Protection, tubeless ready

COMPONENTS

• Handlebar SystemBar XC-One Flat, carbon, integrated bar/stem, internal cable routing, 5° upsweep, 8° backsweep, 760mm width, -6° stem, 1-1/8″ clamp
• Stem SystemBar XC-One Flat, carbon integrated bar/stem
• Grips Cannondale XC Silicone
• Saddle Prologo Dimension NDR, Tirox rails
• Seatpost Fox Transfer SL Factory, Kashima, 31.6, 125mm (S), 150mm (M-XL)


  EXTRA

  • Extra 1 Tubeless valves, SRAM AXS charger
