The Marlin 6 is the perfect ride for progressing your skills on the trails. Its updated slacker frame geometry makes it easier to control on descents while the upgraded suspension fork takes the edge off bumpy trails. Integrated rack and kickstand mounts make it easy to add accessories to this versatile steed.
- *Frame
- Size: XS

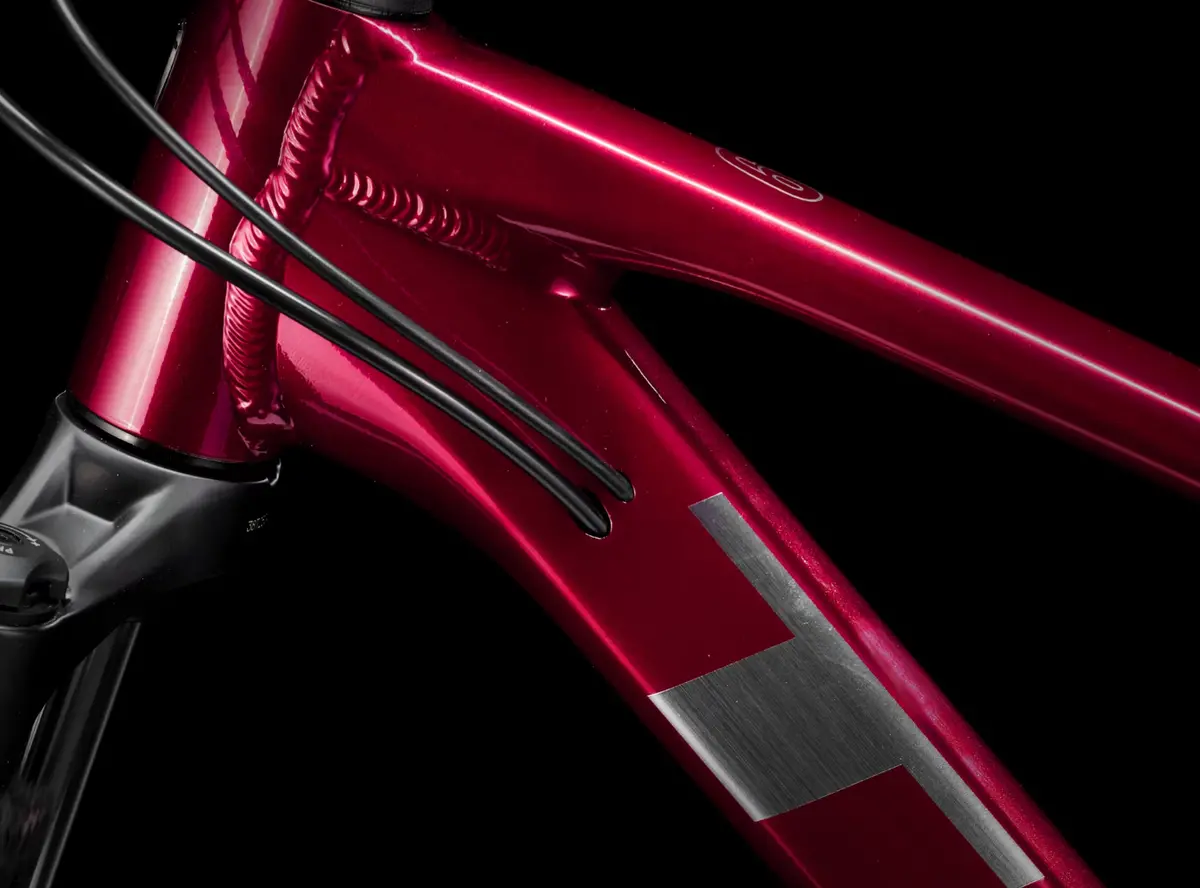

Alpha Silver Aluminium, curved top tube, internal derailleur and dropper post routing, rack and kickstand mount, 135×5 mm ThruSkew Size: S , M , ML , L , XL , XXL
Alpha Silver Aluminium, internal derailleur and dropper post routing, rack and kickstand mount, 135×5 mm ThruSkew - *Fork
- Size: XS , S

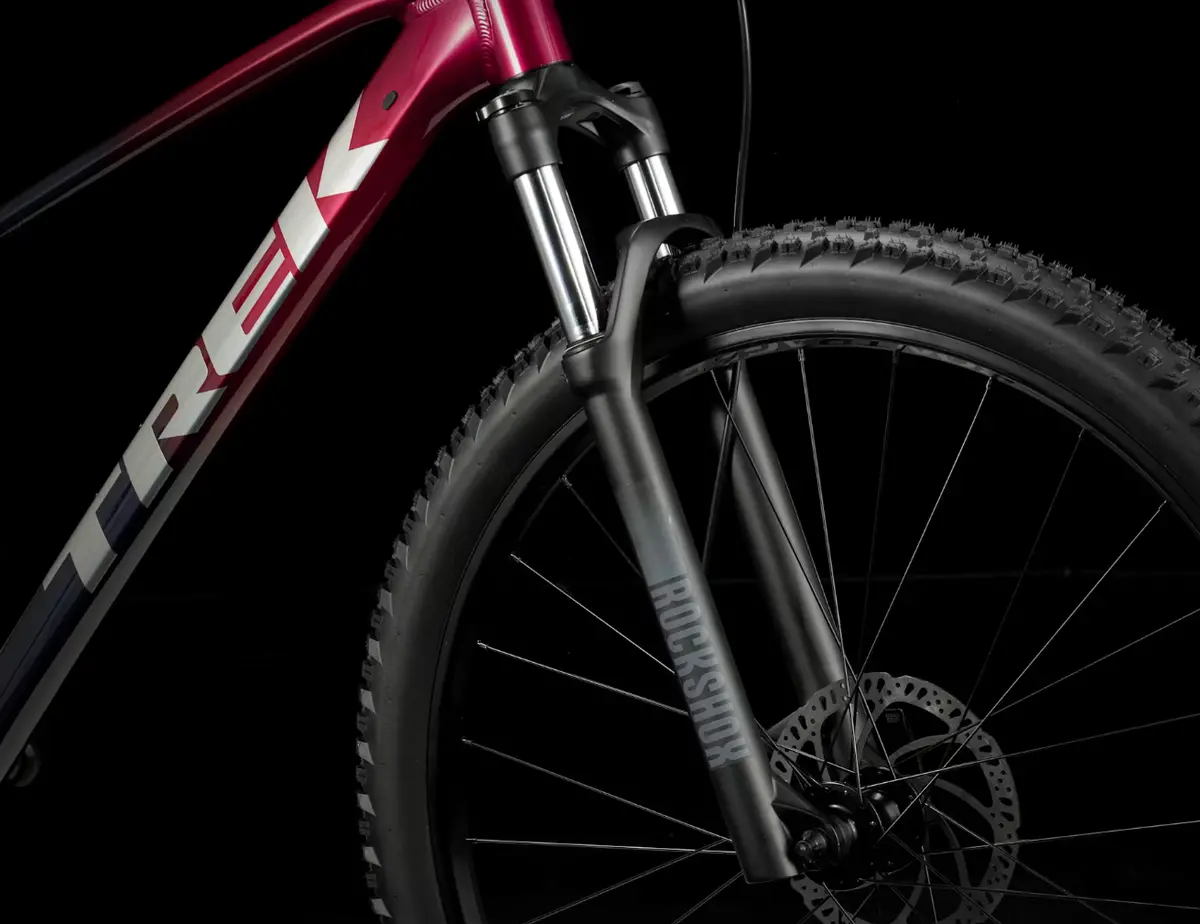

RockShox Judy, coil spring, preload, TurnKey lockout, 42 mm offset for 27.5″ wheel, 100 mm QR, 100 mm travel Size: M , ML , L , XL , XXL
RockShox Judy, coil spring, preload, TurnKey lockout, 46 mm offset for 29″ wheel, 100 mm QR, 100 mm travel
- Hub front
- Formula DC-20, alloy, 6-bolt, 100 mm
- Hub rear
- Formula DC-22, alloy, 6-bolt, Shimano 8/9/10 freehub, 135×5 mm
- Skewer rear
- 173×5 mm QR
- Rim
- Bontrager Kovee, double-wall, Tubeless-Ready, 28-hole, 23 mm width, Presta valve
- *Tyre
- Size: XS , S
Maxxis IKON, tubeless ready, EXO casing, folding bead, 60 tpi, 27.5×2.35” Size: XS , S
Maxxis Ardent Race, tubeless ready, EXO casing, folding bead, 60 tpi, 27.5×2.35″ Size: M , ML , L , XL
Maxxis IKON, tubeless ready, EXO casing, folding bead, 60 tpi, 29×2.35” Size: M , ML , L , XL , XXL
Maxxis Ardent Race, tubeless ready, EXO casing, folding bead, 60 tpi, 29×2.35″ - Max tyre size
- Frame: 29×2.40″ (XXS: 26×2.40″, XS & S: 27.5×2.40″), Fork: See manufacturer
- Shifter
- Shimano U6000, 10-speed
- Rear derailleur

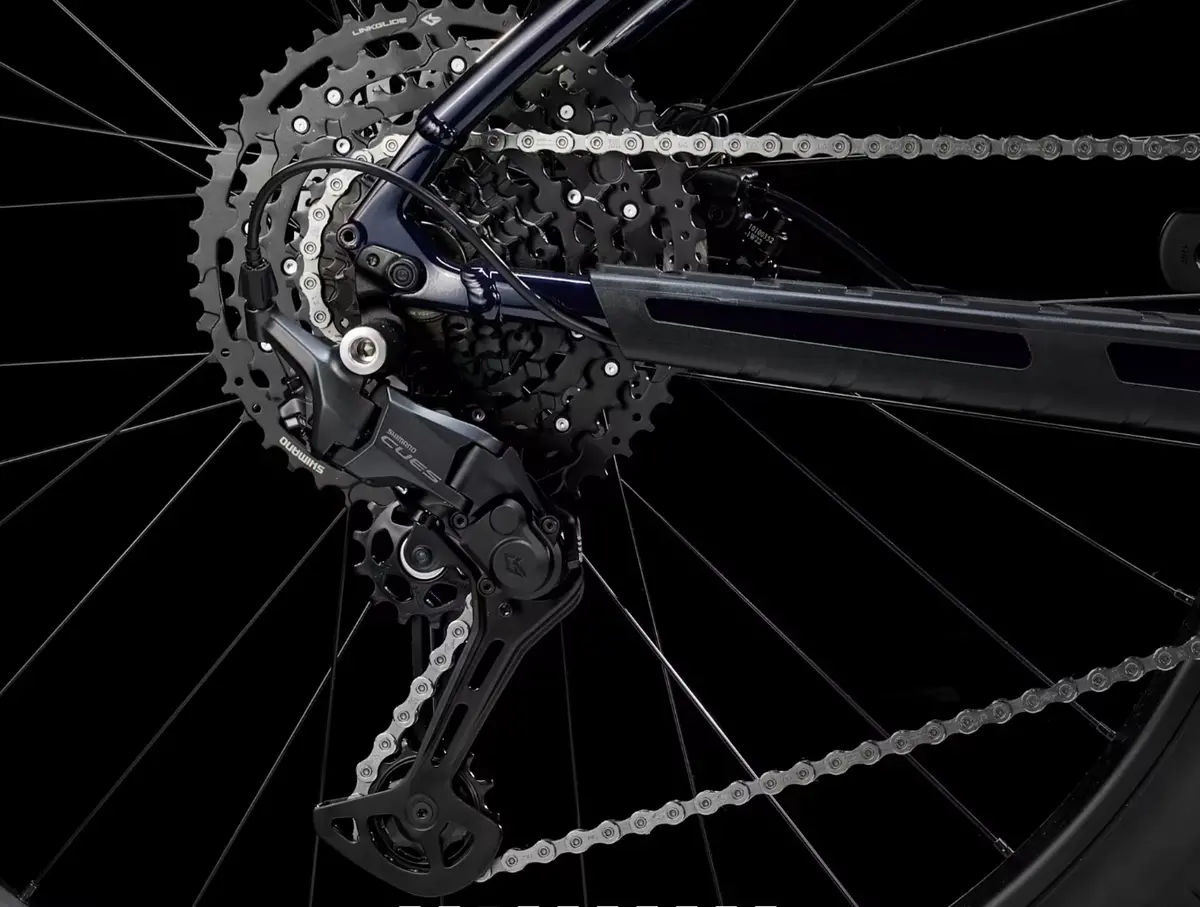

- Shimano CUES U6000 GS
- *Crank
- Size: XS
FSA Alpha Drive, 30T, 160 mm length Size: S , M , ML
FSA Alpha Drive, 30T, 170 mm length Size: L , XL , XXL
FSA Alpha Drive, 30T, 175 mm length - Bottom bracket
- FSA, 73 mm, threaded cartridge, 122.5 mm spindle
- Cassette
- Shimano CUES LG300, LINKGLIDE, 11-48, 10-speed
- Chain
- Shimano LG500
- Pedal
- VP-536 nylon platform
- Max. chainring size
- 1x: See FAQ, 2x: 36T, 3x: 42T
- Saddle
- Bontrager Verse Short, stainless steel rails
- *Seatpost
- Size: XS , S , M
Bontrager alloy, 31.6 mm, 12 mm offset, 330 mm length Size: ML , L , XL , XXL
Bontrager alloy, 31.6 mm, 12 mm offset, 400 mm length - *Handlebar
- Size: XS
Bontrager alloy, 31.8 mm, 5 mm rise, 690 mm width Size: S
Bontrager alloy, 31.8 mm, 15 mm rise, 720 mm width Size: M , ML , L , XL , XXL
Bontrager alloy, 31.8 mm, 15 mm rise, 750 mm width - Grips
- Bontrager XR Trail Comp, nylon lock-on
- *Stem
- Size: XS , S
Bontrager Comp, 31.8 mm, 7-degree, 35 mm length Size: M , ML , L
Bontrager Comp, 31.8 mm, Blendr compatible, 7-degree, 50 mm length Size: XL
Bontrager Comp, 31.8 mm, Blendr compatible, 7-degree, 60 mm length Size: XXL
Bontrager Comp, 31.8 mm, Blendr compatible, 7-degree, 70 mm length - Head set
- Semi-integrated, 1-1/8″
- Brake rotor

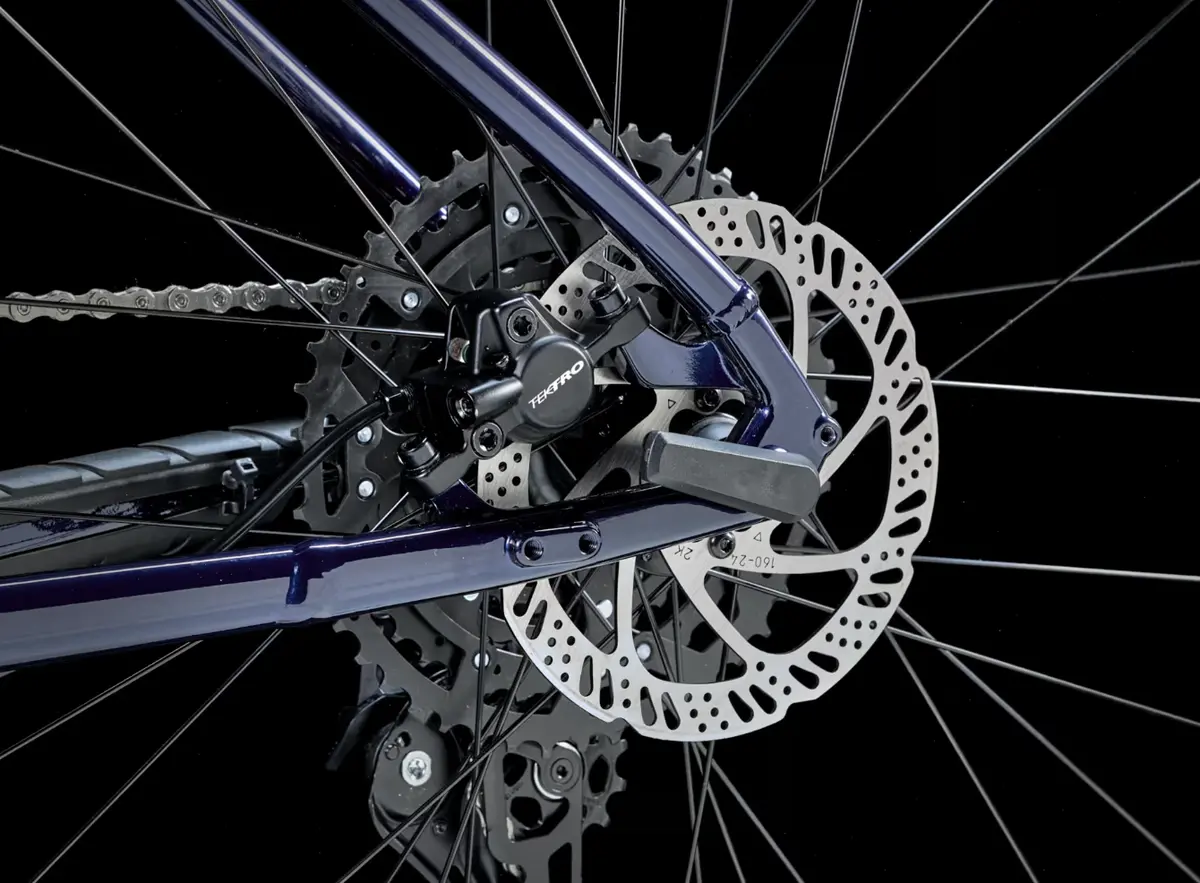

- Tektro, 6-bolt, 160mm
- *Brake Set
- Size: XS , S
Tektro HD-M276 hydraulic disc, short reach Size: M , ML , L , XL , XXL
Tektro HD-M275 hydraulic disc - Rotor size
- Max brake rotor sizes – Frame: 180mm (XXS: 160mm), Fork: see fork manufacturer
- Weight
- M – 14.50 kg / 31.97 lbs (with tubes)
- Weight limit
- This bike has a maximum total weight limit (combined weight of bicycle, rider and cargo) of 136 kg (300 lb).
