2025 Trek Marlin 5 Gen 3 Hardtail – Purple Flip Colorway

Description

 Marlin 5 is a trail-worthy daily rider that’s perfectly suited for everyday adventures, on and off the trail. It features a trail-savvy frame with a suspension fork, 9-speed Shimano CUES shifting and mounts for a rack and kickstand that make it an ideal choice for trail riders or anyone looking for a comfortable, stable commuter with the ruggedness of a real mountain bike.

FRAMSET

*Frame

Size: XXS , XS
Alpha Silver Aluminium, curved top tube, internal derailleur and dropper post routing, rack and kickstand mount, 135×5 mm ThruSkew Size: S , M , ML , L , XL , XXL
Alpha Silver Aluminium, internal derailleur and dropper post routing, rack and kickstand mount, 135×5 mm ThruSkew

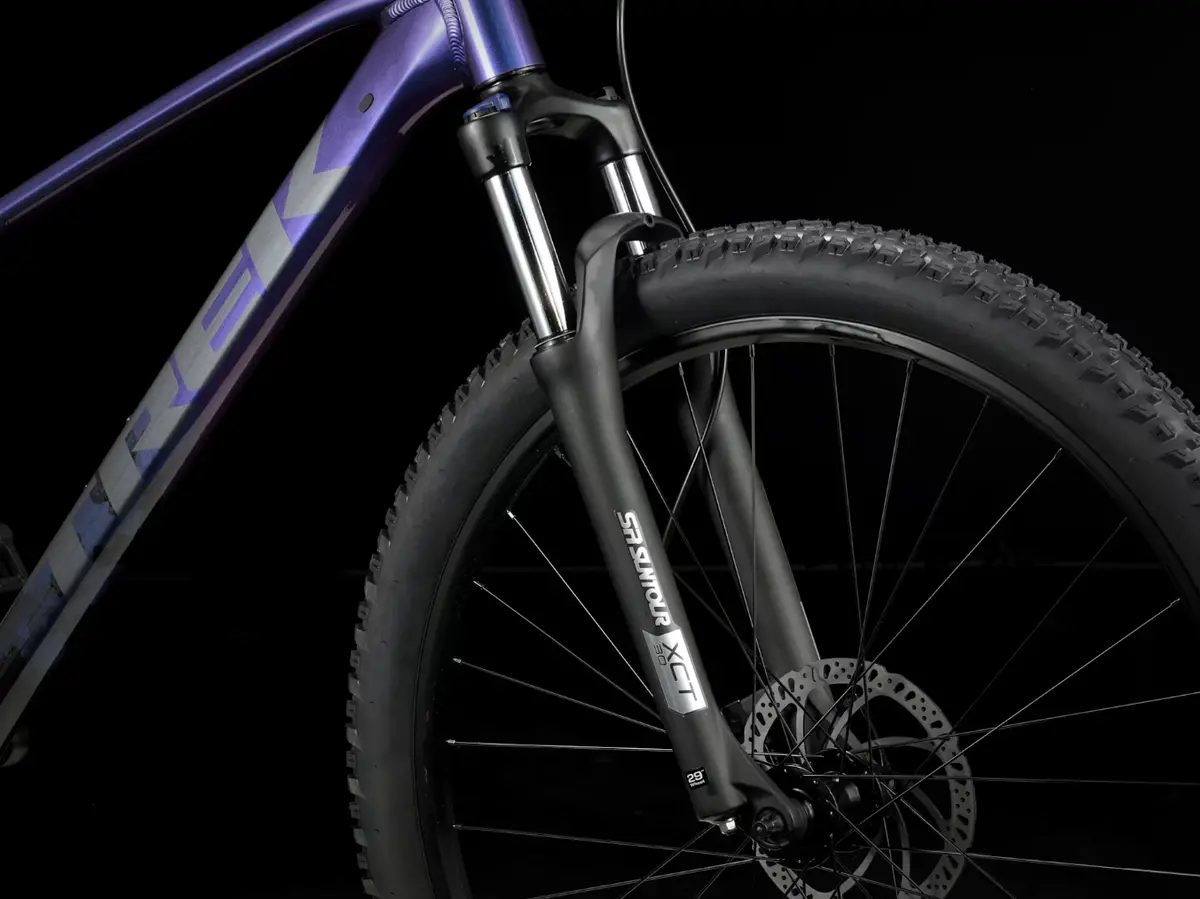

*Fork

Size: XXS
SR Suntour XCM 30, coil spring, lockout, preload, 100 mm QR, 100 mm travel, 26″ wheel Size: XS
SR Suntour XCT 30, coil spring, preload, hydraulic lockout, 42 mm offset for 27.5″ wheel, 100 mm QR, 80 mm travel Size: S
SR Suntour XCT 30, coil spring, preload, hydraulic lockout, 42 mm offset for 27.5″ wheel, 100 mm QR, 100 mm travel Size: M , ML , L , XL , XXL
SR Suntour XCT 30, coil spring, preload, hydraulic lockout, 46 mm offset for 29″ wheel, 100 mm QR, 100 mm travel WHEELS *Hub front Formula DC-20, alloy, 6-bolt, 100×5 mm *Hub rear Formula DC-22, alloy, 6-bolt, Shimano 8/9/10 freehub, 135×5 mm *Skewer rear 173×5 mm QR *Rim Bontrager Connection, double-wall, 32-hole, 20 mm width, Schrader valve *Spokes 14 g stainless steel, black *Tyre Size: XXS
Bontrager XT3 Comp, wire bead, 30 tpi, 26×2.35″ Size: XS , S
Bontrager XT3 Comp, wire bead, 30 tpi, 27.5×2.40″ Size: M , ML , L , XL , XXL
Bontrager XT3 Comp, wire bead, 30 tpi, 29×2.40″ Max tyre sizeFrame: 29×2.40″ (XXS: 26×2.40″, XS & S: 27.5×2.40″), Fork: See manufacturer DRIVETRAIN *Shifter Shimano U4000, 9-speed *Rear derailleur Shimano CUES U4000 *Crank Size: XXS , XS
Prowheel C10Y-NW, 30T steel narrow-wide ring, 160 mm length Size: S , M , ML
Prowheel C10Y-NW, 30T steel narrow-wide ring, 170 mm length Size: L , XL , XXL
Prowheel C10Y-NW, 30T steel narrow-wide ring, 175 mm length *Bottom bracket VP BC73, 73 mm, threaded cartridge *Cassette Shimano LINKGLIDE LG300, 11-46, 9-speed *Chain Shimano LG500 *Pedal VP-536 nylon platform Max. chainring size1x: See FAQ, 2x: 36T, 3x: 42T COMPONENTS *Seatpost Size: XXS
Bontrager alloy, 31.6 mm, 12 mm offset, 300 mm length Size: XS , S , M
Bontrager alloy, 31.6 mm, 12 mm offset, 330 mm length Size: ML , L , XL , XXL
Bontrager alloy, 31.6 mm, 12 mm offset, 400 mm length *Handlebar Size: XXS , XS
Bontrager alloy, 31.8 mm, 5 mm rise, 690 mm width Size: S
Bontrager alloy, 31.8 mm, 15 mm rise, 720 mm width Size: M , ML , L , XL , XXL
Bontrager alloy, 31.8 mm, 15 mm rise, 750 mm width Grips Bontrager XR Trail Comp, nylon lock-on *Stem Size: XXS , XS , S
Bontrager Comp, 31.8 mm, 7-degree, 35 mm length Size: M , ML , L
Bontrager Comp, 31.8 mm, Blendr compatible, 7-degree, 50 mm length Size: XL
Bontrager Comp, 31.8 mm, Blendr compatible, 7-degree, 60 mm length Size: XXL
Bontrager Comp, 31.8 mm, Blendr compatible, 7-degree, 70 mm length Head set Semi-integrated, 1-1/8″ Brake rotor Tektro, 6-bolt, 160mm *Brake Set Size: XXS , XS , S
Tektro HD-M276 hydraulic disc, short reach Size: M , ML , L , XL , XXL
Tektro HD-M275 hydraulic disc Rotor sizeMax brake rotor sizes – Frame: 180mm (XXS: 160mm), Fork: see fork manufacturer WEIGHT Weight M – 15.10 kg / 33.29 lbs (with tubes)Weight limit. This bike has a maximum total weight limit (combined weight of bicycle, rider and cargo) of 136 kg (300 lb).
