Description

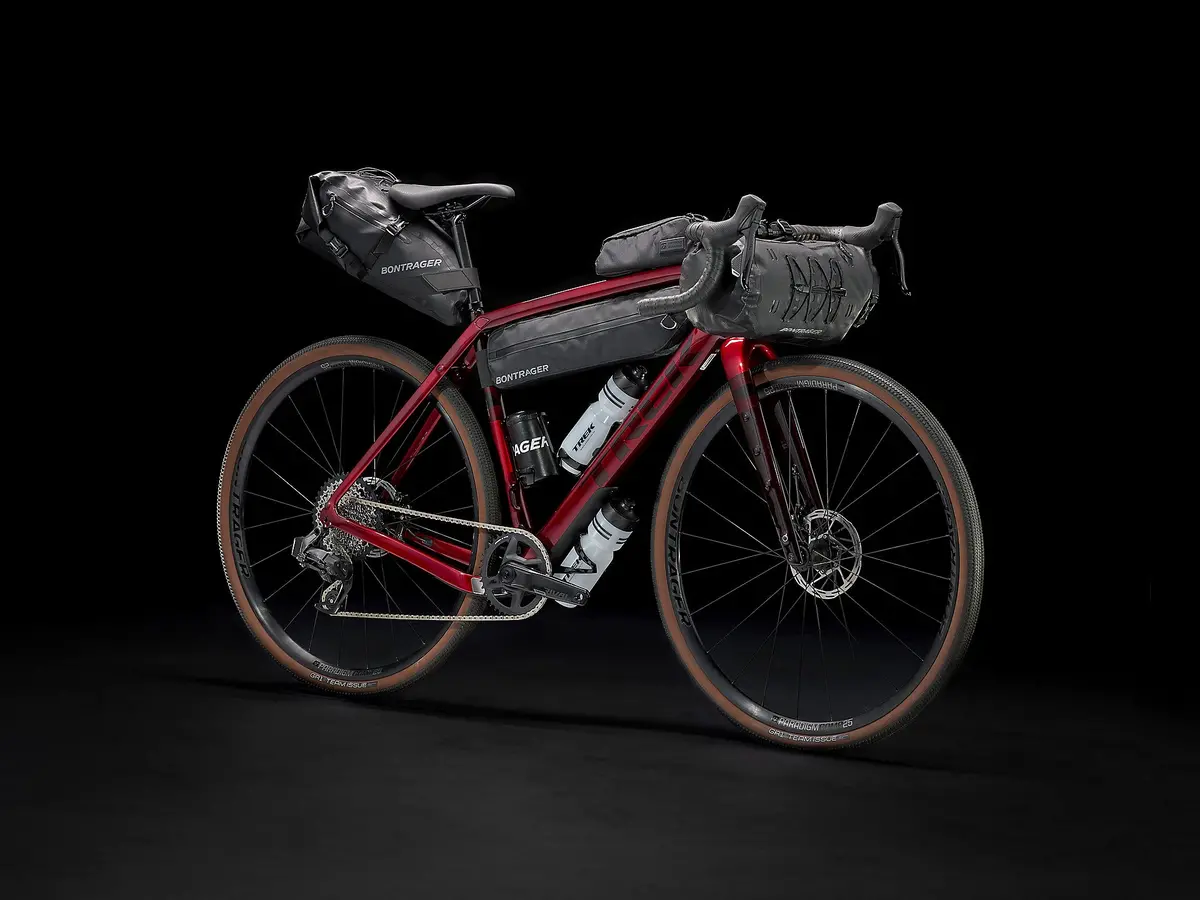

The Checkpoint SL 6 eTap is a carbon gravel bike designed to take you to places you’d never reach on a standard road bike. A lightweight OCLV Carbon frame with gravel-smoothing IsoSpeed, a smart and smooth SRAM Rival AXS wireless electronic drivetrain, nimble-yet-stable progressive geometry and internal storage and loads of mounts make this bike a true gravel powerhouse and a great choice for serious all-road adventurers.
Specifications
*spec applies to all sizes unless otherwise noted
Frameset
| Frame | 500 Series OCLV Carbon, IsoSpeed, internal cable routing, downtube storage door, 3S chain keeper, T47 BB, rack and mudguard mounts, integrated frame bag mounts, flat-mount disc, dropper post compatible, 142×12 mm thru axle |
|---|---|
| Fork | Trek Checkpoint, full carbon, tapered carbon steerer, rack mounts, mudguard mounts, flat-mount disc, 12×100 mm thru-axle |
Wheels
| Wheel front | Bontrager Paradigm Comp 25, Tubeless Ready, 25 mm rim width, 100×12 mm thru axle |
|---|---|
| Wheel rear | Bontrager Paradigm Comp 25, Tubeless Ready, 25 mm rim width, SRAM XD-R 12-speed freehub, 142×12 thru axle |
| Skewer front | Bontrager Switch thru axle, removable lever |
| Skewer rear | Bontrager Switch thru-axle, removable lever |
| Tyre | Bontrager GR1 Team Issue, Tubeless Ready, Inner Strength casing, aramid bead, 120 tpi, 700×40 c |
| Tyre part | Bontrager TLR sealant, 180 ml/6 oz |
| Rim strip | Bontrager TLR |
Drivetrain
| Shifter | SRAM Rival eTap AXS, 12-speed |
|---|---|
| Rear derailleur | SRAM Rival eTap AXS |
| *Crank | Size: 49 SRAM Rival, 40T, DUB Wide, 165 mm length |
| Size: 52 SRAM Rival, 40T, DUB Wide, 170 mm length |
|
| Size: 54, 56 SRAM Rival, 40T, DUB Wide, 172.5 mm length |
|
| Size: 58, 61 SRAM Rival, 40T, DUB Wide, 175 mm length |
|
| Bottom bracket | SRAM DUB, T47 threaded, internal bearing |
| Cassette | SRAM XG-1251, 10-44, 12-speed |
| Chain | SRAM Rival, 12-speed |
Components
| *Saddle | Size: 49, 52 Bontrager P3 Verse Comp, steel rails, 155 mm width |
|---|---|
| Size: 54, 56, 58, 61 Bontrager P3 Verse Comp, steel rails, 145 mm width |
|
| Seatpost | Bontrager carbon, 27.2 mm, 8 mm offset, 330 mm length |
| *Handlebar | Size: 49 Bontrager Elite Gravel, 38 cm width |
| Size: 52 Bontrager Elite Gravel, 40 cm width |
|
| Size: 54, 56 Bontrager Elite Gravel, 42 cm width |
|
| Size: 58, 61 Bontrager Elite Gravel, 44 cm width |
|
| *Stem | Size: 49 Bontrager Pro, 31.8 mm, Blendr-compatible, 7-degree, 70 mm length |
| Size: 52, 54 Bontrager Pro, 31.8 mm, Blendr-compatible, 7-degree, 80 mm length |
|
| Size: 56, 58 Bontrager Pro, 31.8 mm, Blendr-compatible, 7-degree, 90 mm length |
|
| Size: 61 Bontrager Pro, 31.8 mm, Blendr-compatible, 7-degree, 100 mm length |
|
| Brake rotor | SRAM Paceline, rounded, CenterLock, 160 mm |
Accessories
| Bag | Bontrager BITS Internal Frame Storage Bag |
|---|
Weight
| Weight | 56 – 19.95 lbs / 9.05 kg |
|---|---|
| Weight limit | This bike has a maximum total weight limit (combined weight of bicycle, rider and cargo) of 125 kg (275 lb). |
